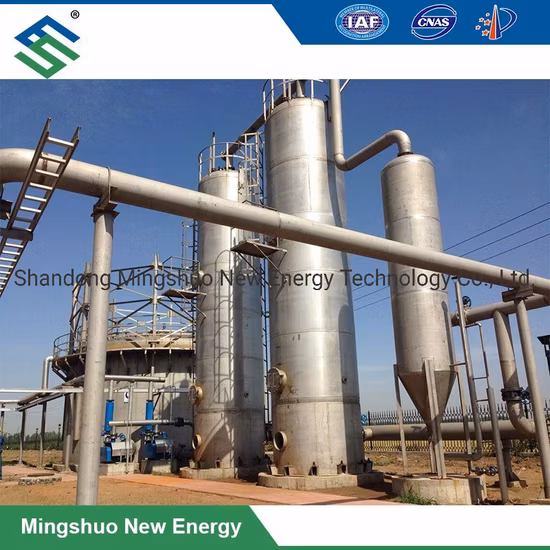

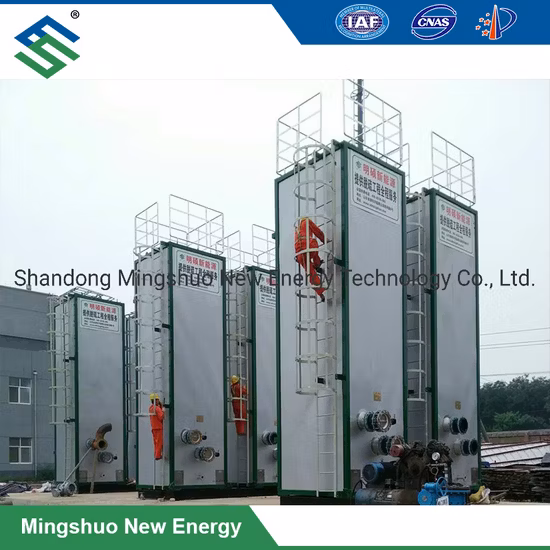

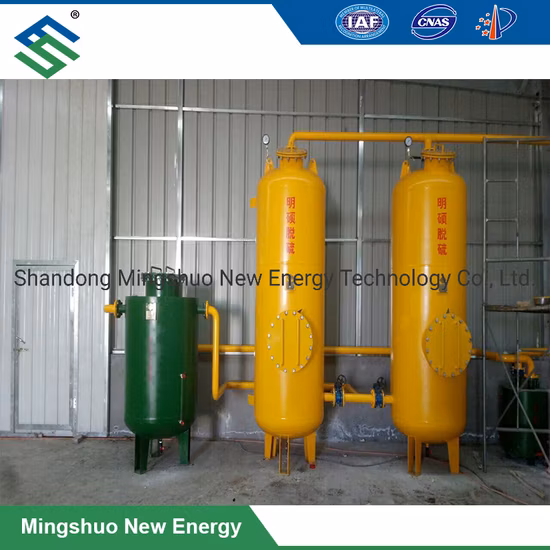

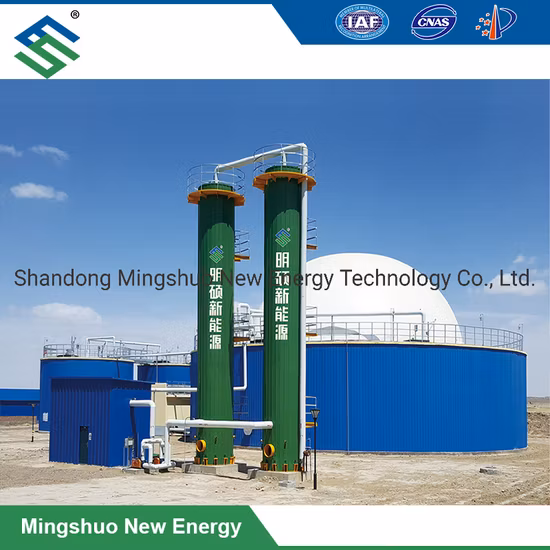

Dry Desulfurization Equipment for Removal of Hydrogen Sulfide

Basic Info.

Heat Transfer Structure	Combined
Automatic Grade	Automatic
Condition	New
Transport Package	Standard Export Package
Specification	Customized
Trademark	Mingshuo
Origin	China
HS Code	84213990
Production Capacity	5 Sets/Month

Product Description

Dry Desulfurization Equipment for Removal of Hydrogen SulfideThis dry desulfurization system is a standardized biogas purification process specially designed and manufactured by our company according to the H2S content in biogas, the required service life span and other relevant data. The dimensions and internal structure of desulfurization equipment vary with the type of gas, gas pressure and hydrogen sulfide content. The desulfurization system is particularly suitable for the gas with low hydrogen sulfide content, small processing capacity and high desulfurization precision. What's more, it can effectively prolong the service life of the methane utilization equipment.Working Principle The basic principle of dry desulfurization is a method of oxidizing H2S to elemental sulfur or sulfur oxides by oxygen. The other method is the special iron oxide absorption method (MT series special iron oxide desulfurizer), that is, the active ferric oxide in special iron oxide desulfurizer is used to absorb hydrogen sulfide in the gas and convert it into ferric sulphide, thus removing hydrogen sulfide (at present, this method is mostly used). The composition of the dry process equipment is that a filler is filled in a tank, and the filler layer can be iron oxide desulfurizer, activated carbon desulfurizer, etc. It is better to use iron oxide desulfurizer, so the sulfur content of desulfurizer is large and the cost is low. At a low velocity, the gas passes through the packing layer of the tank from one end, and the hydrogen sulfide is oxidized to sulfur or sulphur oxide or converted to iron sulfide. The gas is left in the packing layer and the gas is discharged from the other end of the container.Fe2O3 · H2O+3H2S=Fe2S3 · H2O+3H2O2Fe2S3 · H2O+3O2 = 2Fe2O3 · H2O+6S
Main Equipment

Characteristics and Advantages
1.Simple structure, low investment, long life span 2.No human duty is required in the process of work, refueling at fixed period, alternate operation with one standby.3.High efficiency, the desulfurization efficiency can reach 98%.4.Easy to operate and manage.Application of Dry Desulfurization System Dry desulfurization equipment can be used in the purification system of biogas, animal husbandry, starch, papermaking, sewage treatment, alcohol, chemical fiber, pharmaceutical, chemical fertilizer, coking, landfill, gas, natural gas, ceramics, food, deep processing of corn, citric acid industry and so on.According to the amount of hydrogen sulfide imported by the user, the amount of gas treated per hour and the cycle required by the user, the tailored desulfurization tank (or desulfurization tower), gas water separator, flame arrester, blower, pressure stabilizer, desulphurizer, water seal, pressure meter, flow meter and matching pipe valve can be designed.

Management System Certification: ISO9001:2008, ISO14001:2004, OHSAS18001:2007
About Our Company Shandong Mingshuo New Energy Technology Co., Ltd. is a service provider of environmental protection and new energy industry system. We committed into the comprehensive utilization of organic waste which includes biogas project and the equipment associated. The company is the production base of medium and large biogas equipments in China, the member of China Biogas Association, the member of China Association of Rural Energy Industry. The company is the recommended member of CCTV Website Enterprise Channel and China Import and Export Commodity Website, the most complete and excellent biogas equipments manufacturers in China. Mingshuo is a professional company integrating the scientific research, technological design, production and debugging service. The company specializes in the production of desulfurizer, desulfurization equipments and biogas equipments such as, Mingshuo MTZ biogas dedicated desulfurizer, MT ferric oxide desulfurizer, 889 wet desulfurization catalysts, water treatment agent, MS biogas dedicated desulfurization tanks, thioniers, biogas dedicated gas-water separators, assembled tanks, gas holders, positive-negative pressure protectors, biogas dedicated flame arresters, biogas boilers, deironing magnetic separation equipments, etc. We have established a comprehensive quality assurance process to ensure high-quality and tailored services.

Authentication

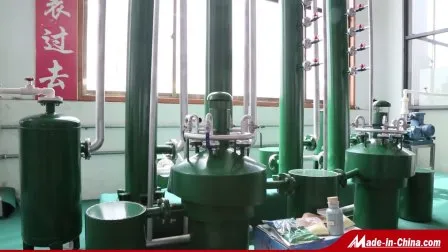

Workshop

Exhibition

Parts of our business partners

Our Team

Contact usPhoenix Liu / Sales DirectorShandong Mingshuo New Energy Technology Co., Ltd.Mob.: +86-17854299827Email: [email protected]
